The DF612 model is compatible with Intel® integrated Iris® Xe GPU, specifically for Core i5 and i7 processors. The device has the capability to deliver a maximum resolution of 8K (7680 x 4320@60 Hz) through its DP1.4 port. It can support two 4K displays (4096 x 2304@60Hz) using its two HDMI2.0 ports. It is an excellent option for large-format displays and kiosks used 24/7.

The fanless design of a passive thermal cooling system reduces the failure rate and ensures that the device operates silently and remains dust-free. The Giada® device is designed to be used in mission-critical applications.

FEATURES:

• Intel® Core™ i5-1235U processor
• 4 x HDMI, Supporting 4K Display
• 2 x SO-DIMM DDR4 Memory, Up to 64GB
• 1 x M-key M.2 (2242/2280) for SSD
• Supporting RJ45, WiFi 6(CNVi), 3G/4G/5G Ethernet Access

SPECIFICATIONS:

• Processor:
• CPU: Intel® Core™ i5-1235U processor
• Frequency: 3.30 GHz (Up to 4.40 GHz )
• Cores: 10
• Memory:
• Type: DDR4-3200MHz
• Socket: 2 x SO-DIMM
• Max Size: 64GB
• Graphics:
• GPU: Intel® UHD Graphics
• Graphic Engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC
• HDMI: 4 x HDMI (Max.4096 x 2304 @60 Hz)
• Network:
• Controller: 1 x Intel® i219LM Gigabit Ethernet, 1 x Realtek RTL8111H Gigabit Ethernet
• Interface: 2 x RJ45
• Mobile Network: 1 x B-Key M.2 (3042/3052) for 3G/4G/5G, 1 x SIM Slot
• Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)
• I/O:
• USB: 4 x USB3.2 Gen2, 2 x USB2.0
• USB Type-C: 1 x USB Type-C3.2 Gen2
• Serial Port: 1 x RS232,  1 x RS232/422/485
• Audio: 1 x Mic-In, 1 x Audio-Out
• Button: 1 x Power on, 1 x CLR-CMOS
• Storage:
• M.2: 1 x M-key M.2 (2242/2280) for NVMe
• JAHC Tech:
• WatchDog Timer: Yes
• Auto Power On: Yes
• Operation System:
• Windows: Windows 11 (64bit)
• Linux: Linux Ubuntu (64bit)
• Power:
• Power Type: DC-IN
• Input Voltage: DC-IN, 19 V/3.42 A
• Environment:
• Operating Temperature: 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
• Relative Humidity: 95%@45℃ (non-condensing)
• Certification: CE, FCC Class B, CCC
• Mounting: Desk/Wall Mounting and VESA Mounting Kit (JZ183)
• Construction: Metal
• Colour: Black
• Dimensions: 20 x 15 x 4.0 cm

WHAT’S IN THE BOX:

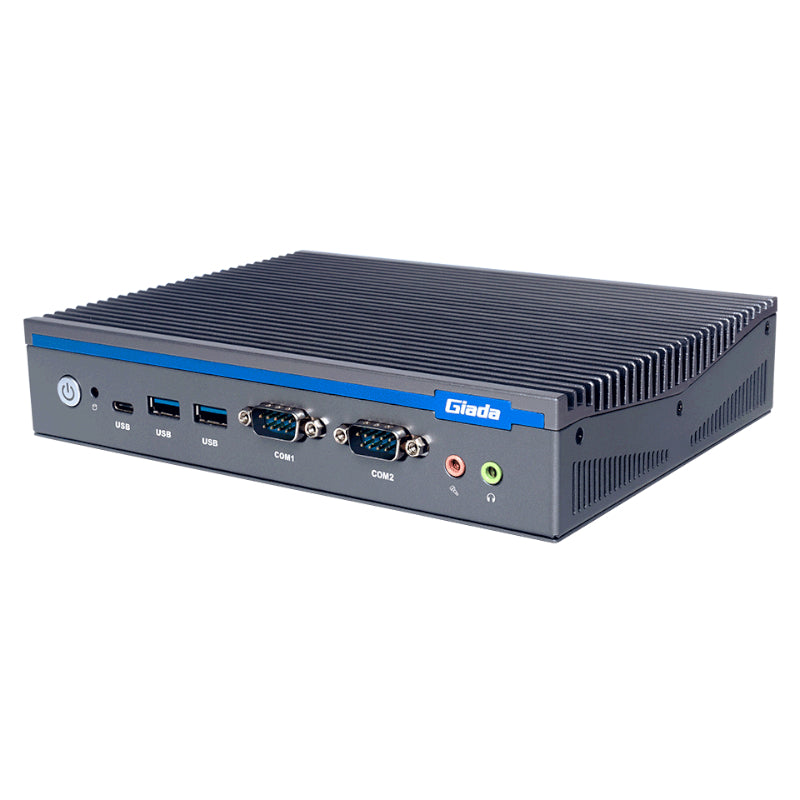

• Giada DF612 Intel Core i5 Embedded Computer – Grey x1
• WiFi Antenna x1
• User Manual x1
